12m Bell Extension - Custom Covers

A Bell Extension is a flexible way to add an elegant end feature or entranceway to a Coverspan structure.

Used as an entrance, it creates a wider approach from the gable end. Used as an end piece, it can create an attractive feature area for dance floors, top tables, displays or hospitality spaces.

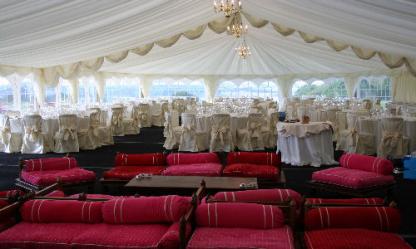

12m with bell end linings

Two Practical Uses

The Bell Extension has two main uses in the marquee industry: as an entranceway or as a hexagonal-style end feature.

As an entranceway, it allows approaches from the gable end and can be used with interior gables and doors to seal the structure. As an end piece, it creates a visually interesting space that works particularly well with clear roof and wall options.

Why Choose a Bell Extension?

Adds shape and interest to a standard marquee layout.

Creates a strong focal point at the end of a structure.

Works well for premium event spaces, dance floors, top tables and feature areas.

Can create a more inviting and flexible entrance.

Specifications

Eave Height (m)	2.3
Ridge Height (m)	4.48
Bay Length (m)	5.7
Roof Pitch (º)	20
Longest Component (m)	6.4
Bracing (roof)	n/a
Bracing (walls)	n/a
Max Suspended Load at Centreline (no snow) (kgs)	100
Extrusion Dimension (mm)	114 x 80
PVC	Flame Retardant to BS7837 Tested to BS5438 Lowick UV Resistant
People To Pitch	3
Time to Erect (hrs)	1.5
Weight inc. PVC (kgs)	474.5
