A-Frame Glamping Structure

line

5m x 9m Complete Glamping A-Frame Tent starting from £7850.00

  • Custom Covers Coverspan Framework on a 2.3m Leg, 0.5m Overhang to the sides and built in 3m increments
  • 3m veranda area for outdoor living; 3m x 2.5m bedroom and bathroom, 3m x 5m mixed living, kitchen and diner.
  • Roof Panel manufactured in 8212 650grm PVC: Fire rating to BS-EN: 7837 (to see colour options click here)
  • Walls Panels manufactured in 8212 650grm PVC: Fire rating to BS-EN: 7837 (to see colour options click here)
  • Front Gable / Wall complete with 3m roll up door and window panels either side
  • Side wall supplied with 2 fixed Window Panels
  • Internal Roof linings in a lightweight 220grm white canvas with wall valance and corner drapes
  • External decorative free standing timber side poles from eave to base plates (no guide ropes required)

5m x 9m Glamping A-Frame Conversion Kit starting from £4950.00

Conversion kit is built using a Standard 6m x 9m structure

  • Custom Covers Coverspan Framework on a 2.3m Leg, 0.5m Overhang to the sides and built in 3m increments
  • 8 x Fish Plate Knuckles - Conversion kit included (Roof beams to be drilled)
  • 1 x Bespoke gable leg (rear)
  • 2 x 2.5m Ground Rails (rear)
  • 2 x 1m Ground Rails (front)
  • 8 x Roof Cloth tension's Assembly
  • 6 x Bar Tension Eave Rails
  • Complete PVC set which includes Roof, Walls, Gable and Internal linings complete with accessories

*All other components including Roof beams whether 6m or curved should come straight from your existing stock

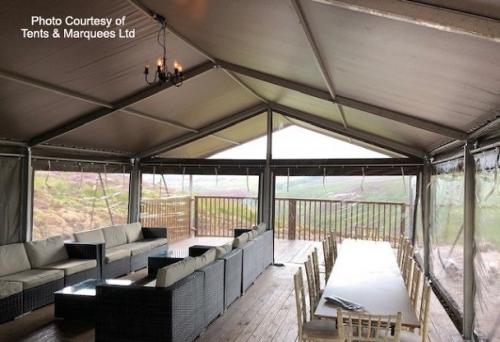

Glamping Tent Internal

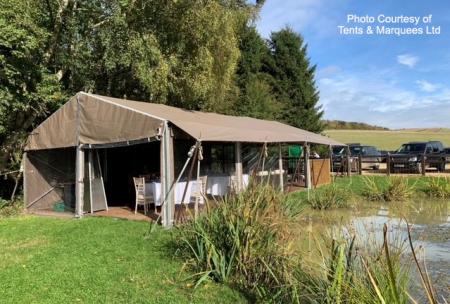

External Shot - TM Glamping Tent

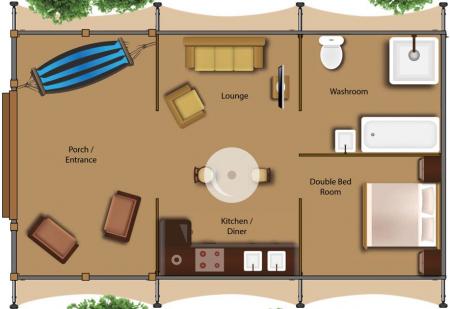

The floor plan shows an example layout of a 5m x 9m Glamping Tent with a 5m x 6m internal space.

This plan shows the bedroom and bathroom to the rear of the structure and an open plan living / kitchen area to the front with the option of a 3m roll up zipped door with windows to each side.

The 5m x 3m porch decking area is ample space for outdoor furniture and barbecuing.

This safari tent would be suitable for 2 adults and 2 children is sofa beds were installed

Glamping Layout 1
