Recovering Portsmouth Tennis Center

Client: Royal Navy    Year of Completion: 2013

The PVC cover of the Indoor tennis courts in Portsmouth is an excellent example of the durability and permanence of a tensile fabric membrane. After 20 years having outlived its original design lifespan the tensile fabric roof needed replacing and Custom Covers were asked to assist with its replacement.

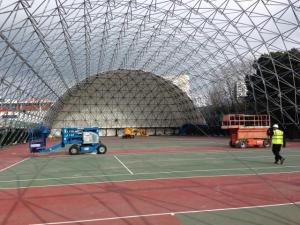

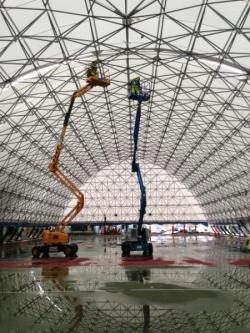

tennis court cover installation clear sky tennis court cover installation
Tennis courts in need of new covers Replacement covers being fitted

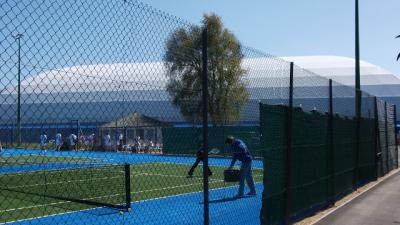

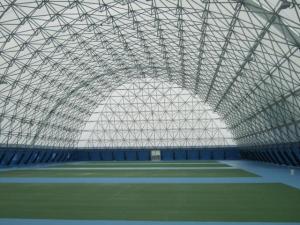

tennis court cover installation finish interior Portsmouth tennis centre
New tennis court covers fitted           New tennis court covers fitted exterior



Following discussions with the client, a type II PVC coated polyester, similar to the original, was chosen for the roof skin of the structure, due to its durable nature and long lifespan. The opportunity was taken to improve the ventilation within the structure by adding mesh walling and sliding walling panels. The cover of this 75m x 35m structure used over 3,500 square metres of fabric and 6,500 meters of lacing and weighed in at over 3 tonnes.

The Navy gave Custom Covers the go ahead for manufacture of the replacement cover in December 2012, and had specified a tight deadline in order to get the project completed before the end of March 2013. The building was also being transferred from Portsmouth Council control back to Royal Navy control and is used by a variety of local schools and clubs. It was therefore necessary to minimise the time the courts were unavailable for use.

There were many aspects of the installation that proved challenging. The initial plans to lift in the fabric elements by crane had to be changed when the City Council banned any road closures during the refurbishment period. An alternative installation method had to be developed taking account that each of the roof panels weighed over 1 tonne. The British weather also did its best to complicate the install with biting cold and storm force winds during the build.

In addition the customer asked that the lighting system be uprated. A modern design was selected that brought the lighting up to current LTA specifications and will use approximately half the power requirement

Custom Covers’ project managerTim Golding said “I am really pleased with the new roof. It provides a high level of natural light and the project was completed on time and within budget”

Royal Navy project manager Lieutenant Commander Sean Winkle praised Custom Covers saying “You have been extremely supportive of this venture and we would like to personally thank you for your assistance.”
