Standard Structures

Blue line v1

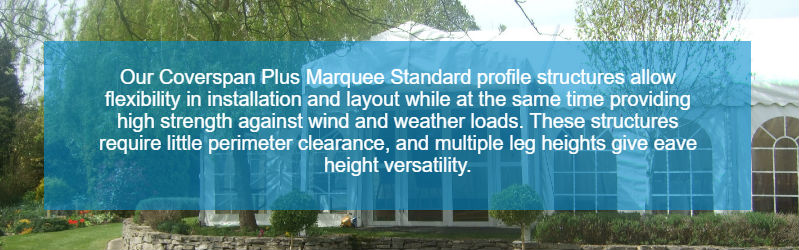

Intro Structure image

Blue line v1

Our Structures

Our Coverspan marquee structures are an aluminium box section frame made from anodised aluminium extruded four channel beams. The channels, known as kedar tracks, run the length of the beams and are used to make the fabric essential to the frame. The roof panels can be tensioned even further by using a bar tensioning system if required.

The beam connectors are used to connect legs to roof beams (eave knuckles) and roof beam to roof beam (ridge knuckle) are made from hot dipped galvanised European steel. Anchoring is achieved by means of wrought iron stakes through base plates attached to the legs of the structure.

For more information on our Standard Coverspan Structures, contact our sales team by emailing sales@customcovers.co.uk or call 02380 335 744.

Blue line v1

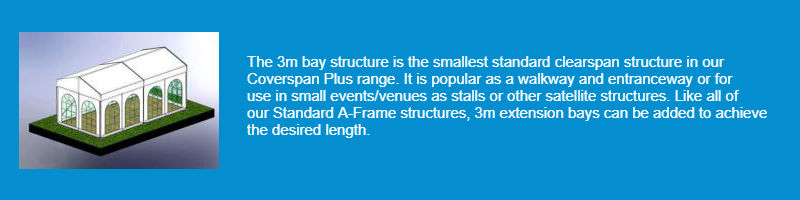

3m Structures

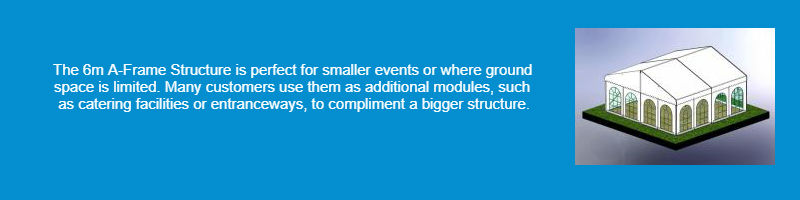

6m structure with text

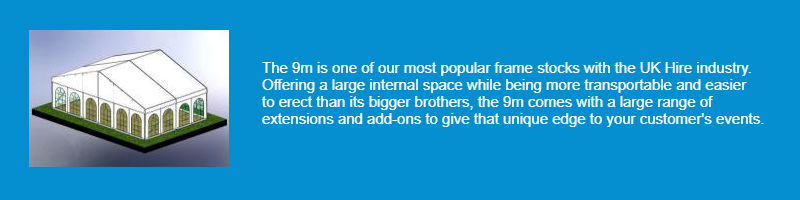

9m structure with text

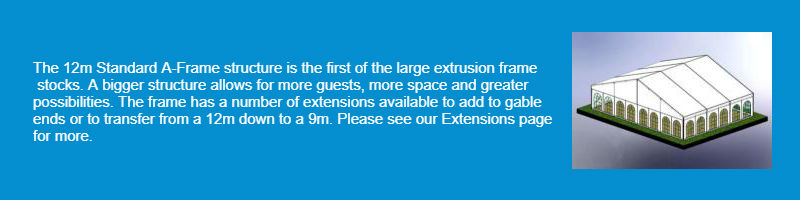

12m structure with text

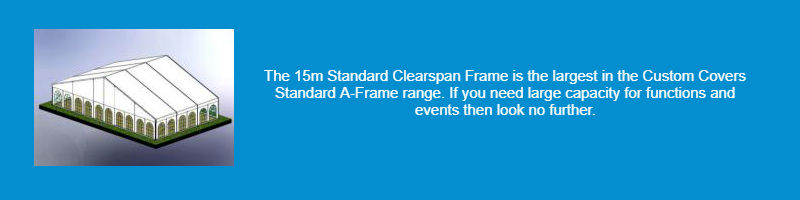

15m structure with text

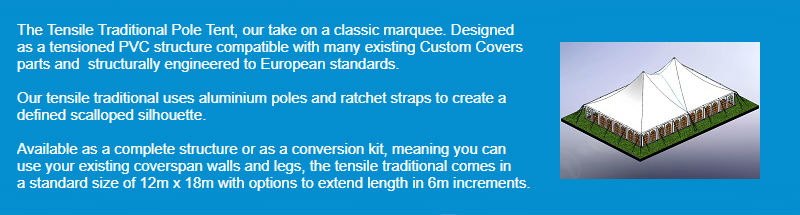

Tensile structure with text
